Clash Detection UI

In this section, we will explore the Clash Query Management window and the Clash Detection Results window.

To start a clash detection, a clash detection query must first be created using Clash Query Management window. You can define as many queries as necessary.

Note

Clash detection only works with meshes, not shapes.

Clash Query Management Window

• To create new clash query, click the Create New Query button. The new query will be created with a default name New Query ###.

• Rename the query by double clicking its name as necessary.

• To duplicate the selected clash query (or queries), click Duplicate Selected Query.

• To delete an existing clash query (or queries), click Delete Selected Query.

• You can also enter your own comment to further clarify its purpose by double clicking empty space in the Comment column.

• The First Created column shows the timestamp when was the query first created. The Last Modified column shows the timestamp when was the query last modified.

In the right side pane, you can see various options that help you to customize the clash detection query to your needs:

Scope

Limit the clash detection processing scope by defining search sets.

• If both Searchset A and Searchset B are empty -> process full scene.

• If only the Searchset A list contains items -> limit processing only to Searchset A items.

• If Searchset A and Searchset B lists contain items -> process Searchset A against Searchset B.

Main Section

Option	Description
Dynamic	Tells the clash detection engine to run dynamic clash detection inspecting time sampled animations.
Start Time on Timeline	Start Time on Timeline in seconds. Works only when dynamic clash detection is enabled. 0 = timeline start time (auto-detected).
End Time on Timeline	End Time on Timeline in seconds. Works only when dynamic clash detection is enabled. 0 = timeline end time (auto-detected).
Purge Permanent Overlaps	If two objects overlap for the whole duration of the dynamic clash, such overlap is ignored. Works only when dynamic clash detection is enabled.

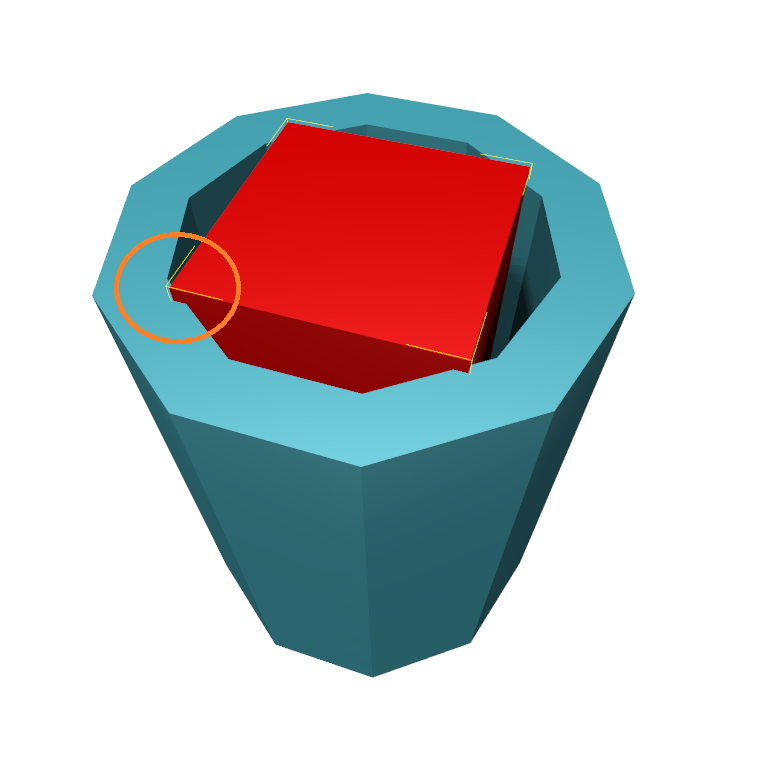

Tolerance	Tolerance distance for overlap queries. Use zero for hard clashes, non-zero for soft (clearance) clashes.

Advanced Section

Option	Description
Use New Task Manager	Use new task manager implementation.
Number of Tasks	Number of tasks used when running multi-threaded. Generally speaking, the more the better.
Pose Epsilon	Epsilon value used when comparing mesh poses. This is used when detecting ‘duplicate meshes’, i.e. meshes with the same vertex/triangle data in the same place.
Bounds Epsilon	Epsilon value used to enlarge mesh bounds a bit. This ensures that flat bounds or bounds that are just touching are properly processed.
Area Epsilon	Epsilon value used to cull small triangles or slivers. Triangles whose area is lower than this value are ignored. Use 0 to keep all triangles.
Coplanar	Detect collisions between coplanar triangles.

Debugging / Experimental Section

Option	Description
Log info in Console	Log info & perf results to console.
Single Threaded	Run single-threaded or multi-threaded code. Mainly for testing.
Filter Test	Experimental filtering. Ignore pairs whose meshes have a direct similar sub-component.
Any hit	Any hit or all hits.
Tight Bounds	Use tight bounds for meshes.
Quantized	Quantized or not.
Tris per leaf	Number of triangles per leaf.
Overlap Code	Use alternative triangle-triangle overlap code.

Do not forget to click the Save Properties button to save your changes!

Note

By default, currently an edited query is automatically saved on query selection change. If you don’t like this behavior, you can turn it off by going to settings and unchecking Save Edited Query on Selection Change.

Clash Detection Results Window

This window provides results per selected clash query.

First, select a clash query you want to work with in the dropdown list Selected Clash Query. You can edit clash queries in the Clash Query Management window, described in the previous section. Click Query Management button to open the Clash Query Management window.

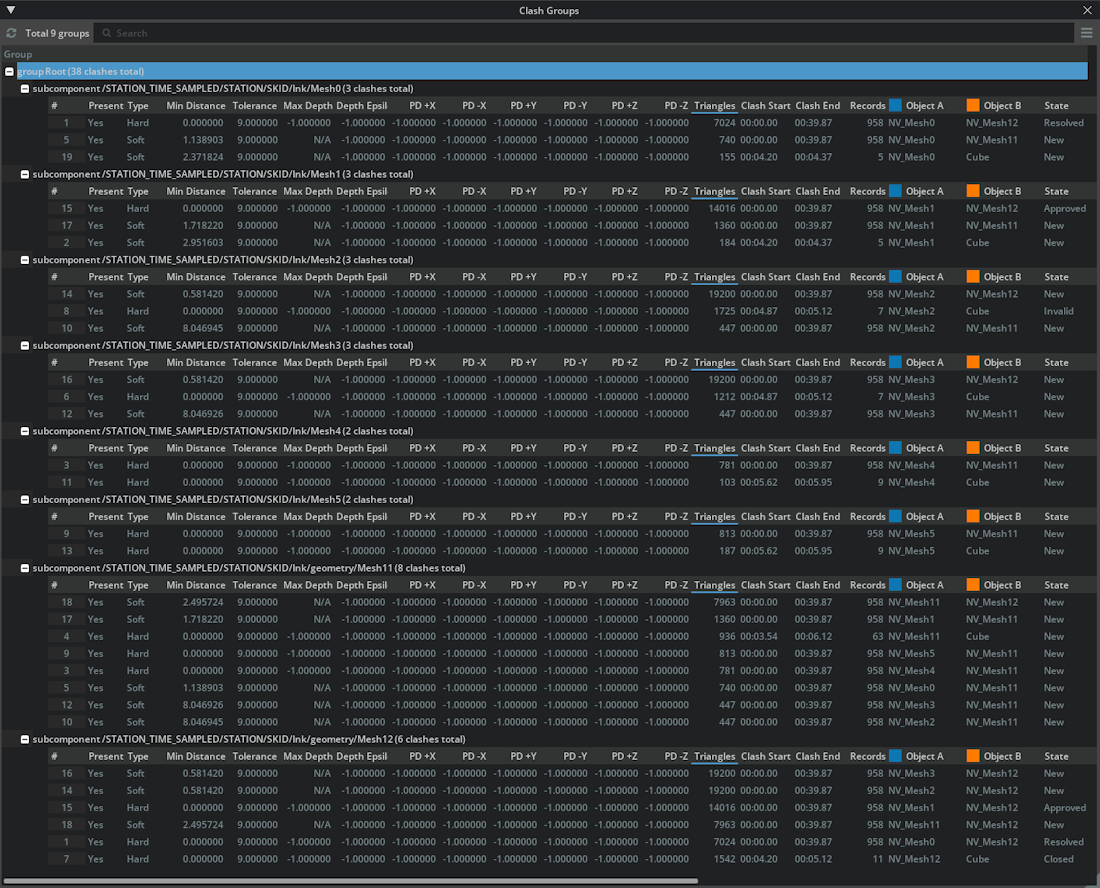

Review descriptions of the results list columns.

Column	Description
#	Clash number. If background color of the number turns red, it indicates, that the clash is no longer present in the stage. If background color of the number turns orange, it indicates, that transformation matrix of one or both clashing objects changed since the last clash detection run. If this happens, it is advised to re-run the clash query.
Present	Indicates, if the clash is present in the stage or not. Note that we never delete even resolved clashes. If you are no longer interested in a clash, simply delete it yourself.
Type	Type of clash. Hard or Soft.

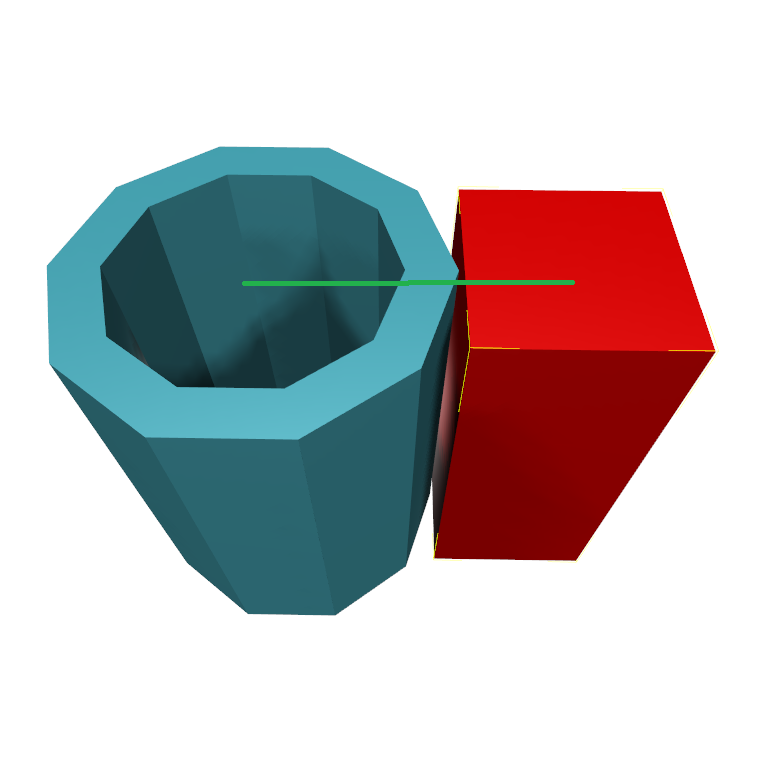

Tolerance	Tolerance which was set at the time when clash detection was run. For hard clashes, the tolerance is always zero. For soft clashes it is non-zero.

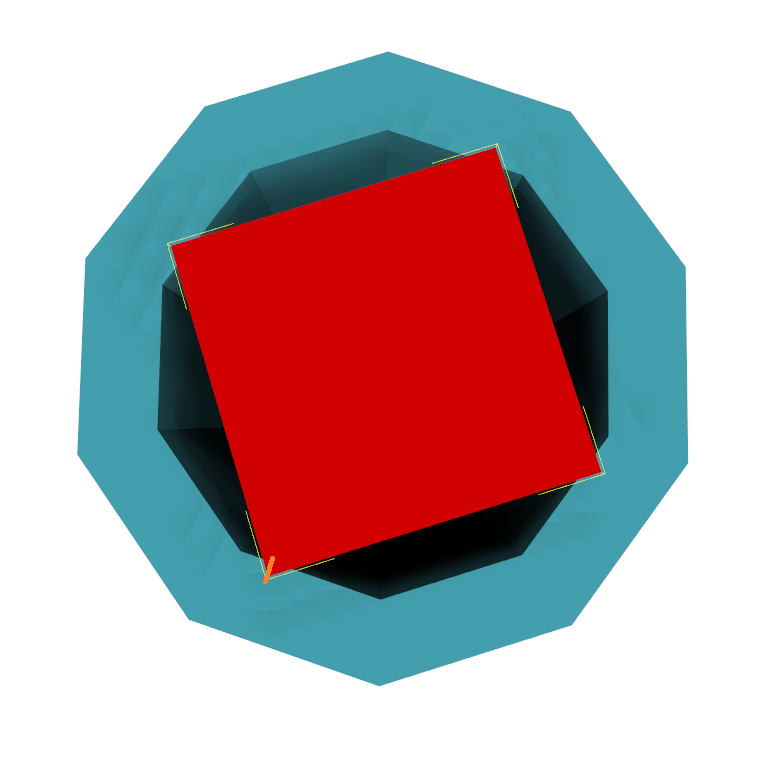

Max Overlaps	Maximum number of overlapping triangles.
Clash Start	Starting timestamp of the clash.
Clash End	Ending timestamp of the clash.
Records	Total number of clashing frames.
Object A	Name of the clashing object A.
Object B	Name of the clashing object B.

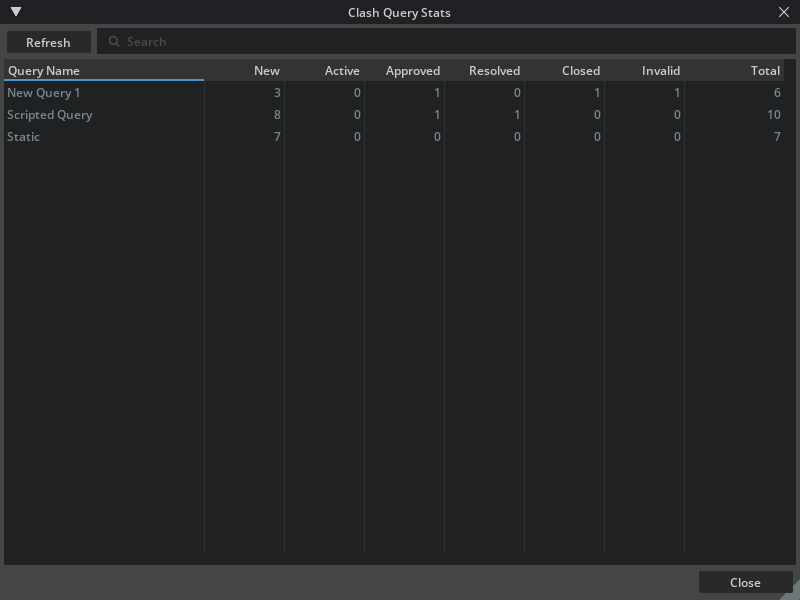

State	Management flag: Current state of the clash. (New, Approved, Resolved, Closed, Invalid).
Priority	Management flag: Priority of the clash from 0 to 5.
Person in Charge	Management flag: Name of a person this clash is assigned to.
First Detected	Shows timestamp when was the clash first detected.
Last Modified	Shows timestamp when was the clash last modified.
Comment	An optional comment for each clash.

Click Run Clash Detection to initiate the clash detection process on the currently open stage, using the parameters from the selected clash query in the Selected Clash Query dropdown list. Once clicked, the button transforms into a progress bar. If needed, you can click the progress bar or press the Escape key to cancel the process. When the process is complete, the results view will display all detected clashes.

Note

Press Ctrl+A to select all clashes. Press the Escape key to deselect the currently selected clashes and remove the clash visualization overlay from the main viewport. This functionality only works when the window is focused.

To delete selected clashes, click Delete Selected.

To export results to a HTML or JSON file, click Export. Additional options display:

• Export only filtered items If ticked, only visible clashes will get exported. If not, all clashes that belong to the to selected clash query will get exported.

• Export clash screenshots If ticked, clash images for each clash will get captured and saved to the target location <target-file-name>_images subfolder.



Refresh button will fully refresh the clash results list, deselect all currently selected clashes, and remove clash visualization overlay from the main viewport.

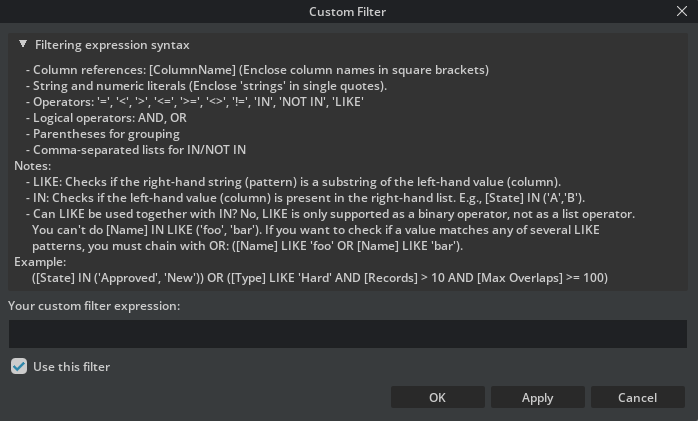

You can instantly filter the resulting list by typing a string into the Search field. Filtering is case insensitive.

Note

You can encapsulate the search string with back quotes to match whole word. E.g. `mesh1`.

Right-click on an item in the list to open a contextual menu. This menu provides options such as selecting clashing objects, inspecting clashing frames, copying information to the clipboard and more.

• Inspect Clashing Frames on Timeline - Displays a timeline with a slider (next to the Refresh button) to inspect the range of clashing frames. You can also double-click on a clash row to reveal the timeline. This feature is unavailable if more than one clash is selected.



• Create Markup - if Markup extension is active, creates a markup (annotation in 3D scene with a 2D whiteboard overlay) for all selected clashes. For more information about Markups, please refer to Markup documentation page.

• Filter View to Only Show Object A Clashes and Filter View to Only Show Object B Clashes - Limits the results view to only show clashes of object A or B. Such filter can be removed by clearing the Search field. It is not available if more that one row is selected!

By clicking the menu icon you can:

• Show full paths of clashing objects in the list by checking Show Full Paths of Clashing Objects.

• Turn on debug logging and diagnostic messages by checking Enable Debug Logging.

➤ Next Steps: Clash Detection Viewport
