Clash Detection Viewport#
The Clash Detection Viewport extension (included in the Clash Detection Bundle extension) displays clashing and non-clashing polygons.

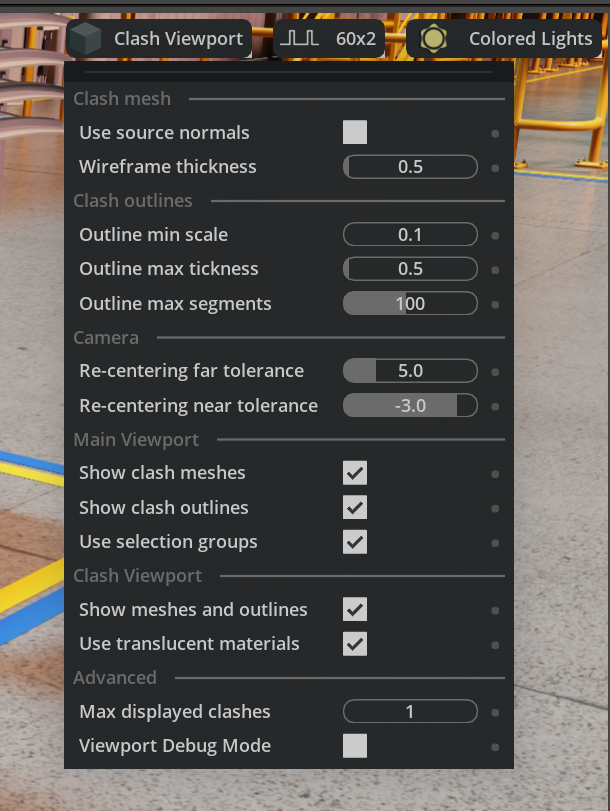

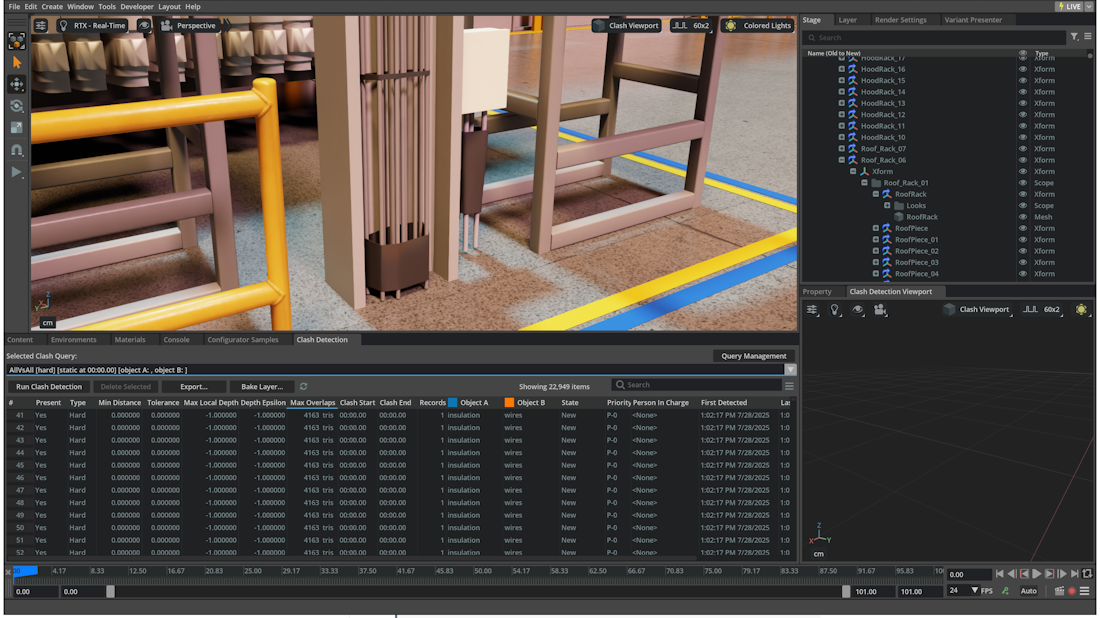

When a clash is double-clicked in the Clash Detection Results list, the main viewport will center on the clash area.
Clash Meshes Appearance#

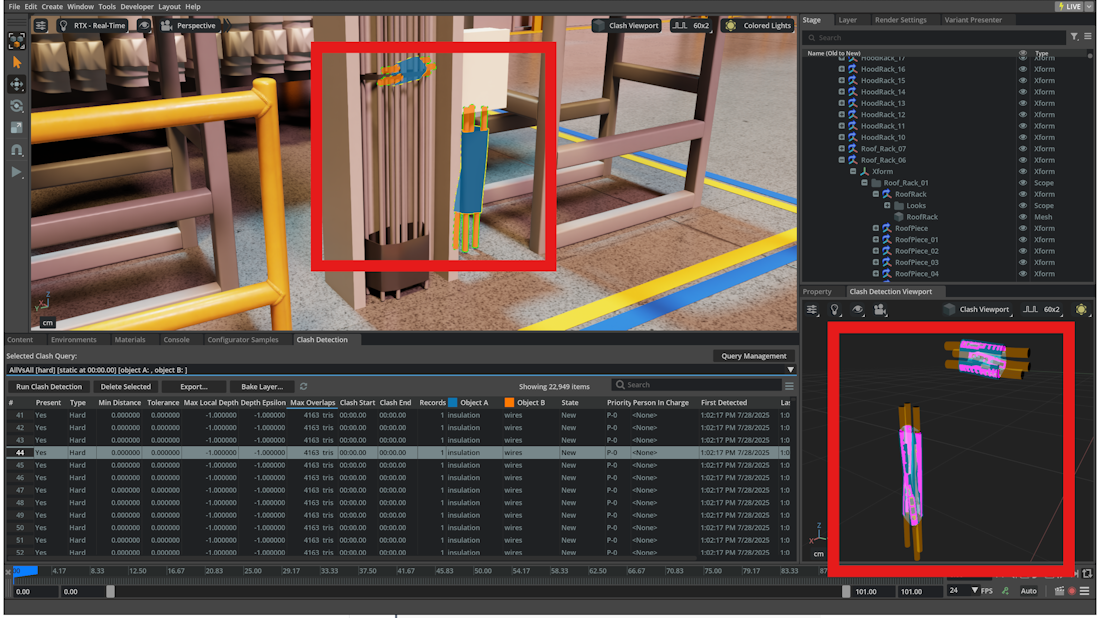

After double-clicking on a clash, the two meshes will change their appearance in the main viewport:
Each mesh will have a different color.
Single polygons composing the mesh will be made visible.
Clashing polygons will be shown with an overlapping black wireframe and a light-independent look.
Clash intersection profile will be shown in purple.
The two clashing meshes will display in isolation from the rest of the stage also in the Clash Detection Viewport (if enabled).
Non-clashing polygons of two objects will be shown with a transparent material (to avoid them occluding the actual area of the clash).
The clashing-polygons will be shown with a non-transparent diffuse material.
The purple intersection profile is shown here too.
Moving Clash Meshes#
It’s useful to move clash meshes in the stage to clearly see the issue in a crowded area. Some rules to keep in mind when moving clash meshes, as the behaviour is different for instanced prims vs. non-instanced prims:
When Clash Meshes are shown on non-instanced prims, the original source meshes are modified. This means that: - Translating Clash Meshes for non-instanced prims in main viewport moves the original source mesh that has been marked as clashing. - Translating Clash Meshes for non-instanced prims in clash viewport doesn’t affect the original source mesh that has been marked as clashing. - Deselecting a clash from the Clash Detection list of clashes will restore original look of the source mesh.
When Clash Meshes are shown on instanced prims, the original source meshes are hidden. This means that: - Translating Clash Meshes in either viewport doesn’t affect the original source mesh that has been marked as clashing. - Deselecting a clash from the Clash Detection list of clashes will restore visibility of the original source mesh.
➤ Next Steps: Clash Detection Core
